How a Water Based Ink Metering System Reduces Color Variation

Color variation in water-based flexographic printing often begins before the printed sheet reaches the dryer. A press can appear stable at startup, yet density, hue, or visual strength may drift as ink temperature changes, solids concentrate, cells begin to plug, or manual adjustments alter the film delivered to the plate. A water based ink metering system reduces this drift by keeping the ink film transferred from the anilox roller more repeatable from one impression to the next.

The practical objective is controlled ink delivery, not simply a darker or lighter print. When the same anilox volume, doctor blade condition, ink viscosity, circulation state, plate contact, and drying conditions are held within their workable ranges, the printed color has a far better chance of remaining stable through a production run. Metering cannot correct every source of variation, but it removes a major source of avoidable change: inconsistent ink film thickness.

Color starts with the ink film on the anilox

In a flexographic unit, the anilox roller carries ink in engraved cells. The doctor blade system removes excess ink from the roller surface, leaving ink primarily inside those cells. As the anilox contacts the plate, a controlled volume transfers to the image areas; the plate then transfers a portion of that ink to the substrate.

This chain is short, but each transfer stage changes the result. A small shift in the amount of ink remaining in the anilox cells can alter color strength. On coated paperboard, the change may show mainly as density or gloss. On uncoated linerboard, recycled board, or rough corrugated surfaces, absorption and surface irregularity can make the same ink-film change look much larger. A print result that seems like an ink issue may therefore be an interaction between metering, substrate absorbency, plate impression, and drying.

Reliable metering creates a repeatable starting point. It prevents the press from constantly compensating for an unstable doctor blade contact or fluctuating ink condition. The benefit is particularly visible on solid areas, screened vignettes, brand colors, and barcodes where excessive ink spread can close narrow elements or reduce edge definition.

Where uncontrolled metering creates variation

Open ink trays, uneven chamber pressure, worn blades, and contaminated seals can all disturb the amount of ink left in anilox cells. The resulting defect is not always a uniform color shift. It can appear as a gradual fade across a run, darker color at one side of the web, random streaks, dirty highlights, or a color that changes after a stop and restart.

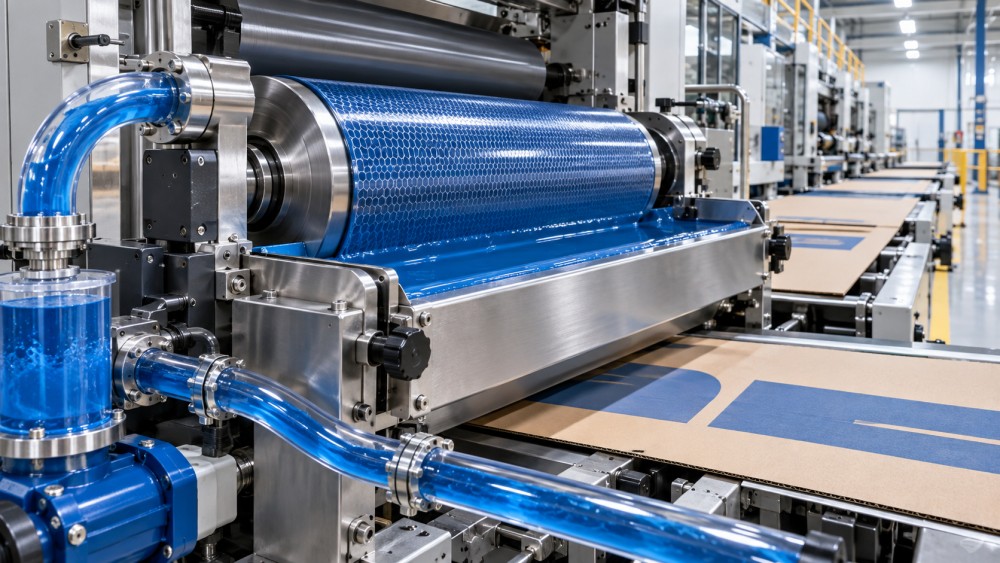

A chambered doctor blade arrangement is commonly used because it encloses the ink against the anilox and meters it with a defined blade geometry. The chamber also supports recirculation, so ink condition can be managed closer to the point of use. However, a chamber does not automatically guarantee stable color. Its end seals, blade mounting, pressure balance, return flow, and cleaning condition still determine whether it performs as a metering device or merely contains ink.

• Blade wear changes the contact edge. A blade that has lost its clean, uniform edge can leave excess ink on the anilox surface or meter unevenly across the width.
• Seal leakage changes chamber behavior. Visible leakage wastes ink, but a smaller leak can also introduce air, reduce local chamber pressure, and create inconsistent filling near the ends of the roller.
• Pulsing circulation produces repeating defects. If pump output surges rather than flows smoothly, ink supply within the chamber can fluctuate. The print may show a recurring density pattern that resembles a mechanical vibration problem.
• Partially blocked anilox cells lower available volume. This often causes weak color, but it can also create patchy strength when contamination is uneven across the roller.

These causes should not be treated as interchangeable. Raising ink concentration may temporarily deepen a weak color caused by dirty cells, yet it will not restore the missing cell volume. Increasing blade pressure can reduce a surface film left by poor metering, but excessive pressure may accelerate blade wear, score the anilox, or produce more frictional heat. Corrective action needs to follow the actual mechanism.

Ink condition must remain stable at the meter

Water-based inks are sensitive to evaporation and temperature because water loss changes viscosity and solids balance. A viscosity reading alone is useful but incomplete. Two inks can show a similar cup reading while behaving differently if their temperature, pH, pigment dispersion, foam level, or resin condition differs. The meter sees the ink as it arrives at the chamber, so the circulation loop matters as much as the blade assembly.

Stable circulation keeps pigments and additives more evenly distributed, carries heat away from the printing unit, and reduces the chance of localized settling. The system should return ink without excessive aeration. Air entrainment creates foam and compressibility in the loop, which can lead to unstable chamber filling, pinholing, and inconsistent transfer. A higher pump setting is not a universal fix for poor coverage; too much flow can increase turbulence and foam, especially with inks that already have a tendency to aerate.

Temperature control deserves close attention during long runs. As ink warms, its flow behavior changes, and water evaporation at the press may alter concentration. If color is adjusted only by adding water after the print becomes strong, the corrected viscosity can mask a broader shift in pH or solids. The next adjustment may then move the color in an unexpected direction. A disciplined approach records the ink condition at startup, after stabilization, and whenever a density or color change is confirmed.

Do not confuse a color shift with a drying shift

Water-based ink can look different immediately after printing than it does after drying. On absorbent substrates, the color may lose apparent strength as the vehicle penetrates. On less absorbent surfaces, insufficient drying can leave a darker-looking film at the delivery end, followed by rub, setoff, or a changed appearance after later conversion. Metering controls deposited ink volume; it does not replace proper dryer balance, airflow, substrate conditioning, or press speed management.

This distinction matters when troubleshooting. If the wet drawdown matches the target but the dry sheet does not, changing doctor blade pressure may send the process away from the true cause. Compare samples at the same stage of drying and under consistent viewing conditions before making an ink-delivery correction.

How the system limits manual compensation

Without stable metering, color control can become a sequence of reactive adjustments: add water, change the pump setting, increase impression, alter the blade, then reduce ink strength after the solid becomes too dark. Each action affects more than one variable. Frequent compensation also makes it difficult to learn which setting produced the improvement.

A controlled system allows the press setup to be established in a more logical order. The anilox and plate are selected for the required ink volume and image resolution. Blade condition and chamber sealing are verified. Ink is circulated until its condition is stable. Only then is color adjusted within the approved ink formulation range. Once the target is reached, later deviation is easier to interpret because the metering baseline is known.

1. Confirm that the anilox is clean and appropriate for the artwork before assuming the ink is weak.
2. Inspect blade seating, blade edge condition, chamber alignment, and end seals across the full print width.
3. Stabilize recirculation and temperature before approving color. A reading taken immediately after a refill or a restart can be misleading.
4. Assess printed samples after comparable drying, using the same substrate grade and viewing method.
5. When correction is necessary, change one controlled variable and observe the result long enough to separate it from normal start-up movement.

This sequence is especially useful during frequent job changes. A new color is often blamed for a mismatch that actually comes from leftover wash water, residual cleaning solution, a changed anilox, or a blade that was reinstalled with uneven loading. Maintaining documented setup conditions for repeat jobs reduces the need to rebuild color by eye.

Anilox volume and blade pressure are often misread

Anilox volume has a direct relationship with available ink, but selecting a higher-volume roller is not a simple route to stronger color. More volume can increase solid coverage, yet it may also increase dot gain, reduce fine reverse clarity, slow drying, and amplify variation on porous board. Conversely, a lower-volume anilox can improve detail while leaving insufficient coverage for a large solid area. The right choice follows the ink, plate, image content, substrate, and required finished appearance.

Blade pressure is similarly easy to overuse. The blade needs enough controlled contact to wipe the anilox surface cleanly. Beyond that point, more loading does not create a more precise meter. It can generate heat, increase wear, and raise the risk of scoring if contamination is present. A recurring dark line may be caused by blade damage, but it can also result from a damaged anilox surface, dried ink on the roller, or uneven chamber alignment. Replacing the blade without examining the pattern can waste time and conceal a larger maintenance issue.

Maintenance protects color repeatability

The metering system is only as consistent as its cleanability and routine inspection. Dried water-based ink in lines, chambers, fittings, or anilox cells changes flow and available volume. Cleaning must remove residue without damaging the engraving, blade holder, seals, or chamber surfaces. The cleaning method should match the ink chemistry and component materials, and rinse water must be fully removed before the next ink is introduced.

Blade replacement should be based on print condition and wear history rather than a visible failure alone. End seals deserve equal attention because their condition affects both containment and chamber pressure. After maintenance, verify that the chamber is aligned correctly and that the blade contacts consistently across the roller. A clean anilox paired with poor installation can still produce unstable color.

When a color problem appears, start with the physical ink-delivery path before reformulating the ink. Confirm the anilox condition, blade contact, chamber seal, circulation stability, and dry-state evaluation. That order keeps the meter from becoming an overlooked source of variation and makes color corrections more repeatable from run to run.
