Consistent ink flow is essential for sharp graphics, accurate color, and reliable production on flexographic and packaging printing lines.
Water based ink viscosity control systems help operators maintain stable ink properties as temperature, evaporation, and press speed change.
When viscosity remains within the correct operating range, presses produce cleaner solids, sharper type, steadier color, and fewer avoidable production interruptions.
Why Viscosity Stability Matters During Flexographic Printing
For press operators, viscosity is not an abstract laboratory value. It directly affects how ink transfers from the chamber to the anilox roller.
It also influences how effectively the anilox releases ink to the printing plate, then onto paper, linerboard, corrugated board, or other substrates.
If water based ink becomes too thick, transfer can become restricted. Solid areas may look weak, halftones may lose detail, and printed colors can appear darker.
Thick ink may also create poor leveling on absorbent papers. Operators can see mottling, uneven coverage, dirty edges, and inconsistent density across the sheet.
If ink becomes too thin, excessive flow can reduce color strength. Fine text may lose definition, reverse areas may fill in, and dots can spread.
Low-viscosity ink can also make registration and drying problems more visible, especially when high press speeds and changing board conditions occur together.
These effects matter because packaging customers judge printed work by brand color, logo clarity, barcode readability, and repeatability between production batches.
Manual viscosity checks can identify a problem, but they do not always prevent it. Ink conditions may drift again shortly after measurement.

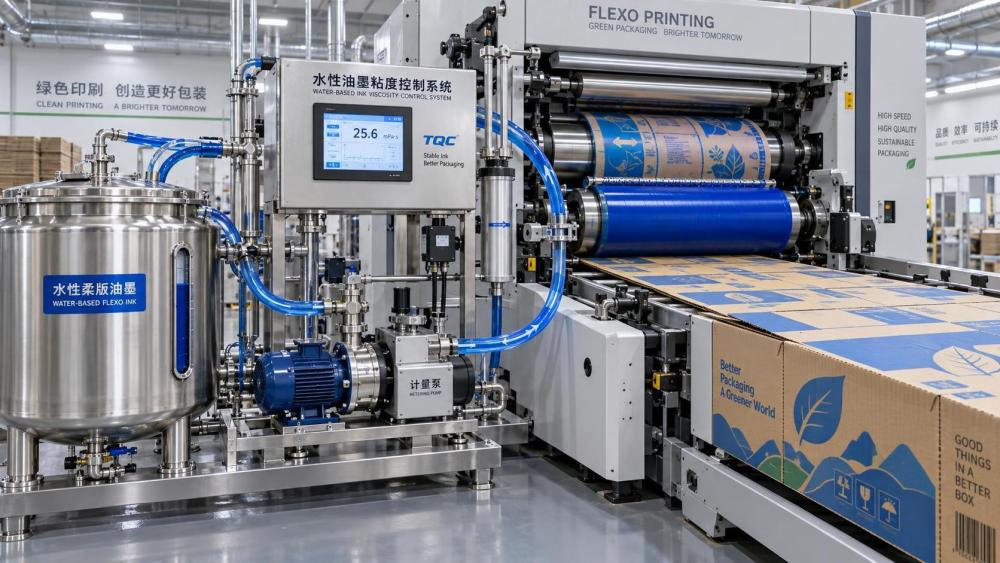

A water based ink viscosity control system continuously monitors and corrects ink condition, helping the press maintain the selected operating target.
What Causes Water Based Ink Viscosity to Change
Water based flexographic inks are sensitive to operating conditions. Their viscosity changes throughout a shift because water evaporates during circulation, transfer, and drying.
Higher press speeds typically increase air movement and evaporation. This can gradually thicken ink, even when the original formulation was prepared correctly.
Temperature is another important factor. Ink may become thinner as it warms, while lower temperatures can increase resistance to flow through the ink circuit.
Heat can come from pumps, chamber systems, pressroom conditions, recirculation lines, dryers, and long-running jobs with continuous ink movement.
Substrate changes also affect operator decisions. Different linerboard grades, coated papers, recycled papers, and board surfaces can require different ink behavior.
Anilox volume, screen count, doctor blade condition, plate design, and image coverage all influence the amount of ink removed from the circulation system.
Long solid-print jobs can change ink conditions faster than light-coverage work. Frequent stop-start production can create another pattern of viscosity variation.
For this reason, operators should not assume that a viscosity setting remains suitable for every order, substrate, color, or production speed.
How Water Based Ink Viscosity Control Systems Work
Most water based ink viscosity control systems combine a measurement device, a controller, a dosing method, and a circulation arrangement connected to the ink supply.
The system measures ink viscosity at regular intervals or continuously, depending on the technology and configuration used on the flexographic press.
When measured viscosity rises above the setpoint, the controller can add a controlled amount of water, solvent blend, or approved correction liquid.
When ink becomes too thin, the system may alert the operator, adjust according to approved process rules, or require replenishment with stronger ink.
Many systems use a viscosity cup principle, while others use electronic sensors. The best option depends on ink chemistry, maintenance capability, and required control accuracy.
After correction, circulation helps distribute the adjusted ink through the tank, pump, hose, chamber, and return line before another measurement occurs.
The objective is not to chase every small variation. Effective control keeps the ink within a practical process window without unnecessary overcorrection.
This controlled approach is especially valuable on multi-color presses, where uncontrolled changes in one station can create visible color imbalance across the print.
What Operators Notice First on the Press
Operators usually see the benefits first in print consistency. Solid areas remain more even, and color strength changes less during extended production runs.
Stable viscosity also supports more predictable ink transfer. This reduces the need for repeated manual adjustments to impression, doctor blade pressure, and ink circulation settings.
During a long run, fewer color corrections mean less discarded board, fewer downgraded sheets, and less time spent comparing samples against approved standards.
For corrugated packaging, this can be important because board quality already varies with flute structure, moisture, surface properties, and liner paper composition.
A viscosity control system cannot eliminate every print defect. It does, however, remove one major source of variation from the troubleshooting process.
When viscosity is stable, operators can investigate other causes more confidently, including anilox cleanliness, plate wear, registration drift, or substrate inconsistency.
This makes fault finding faster. Instead of changing several press variables at once, the operator can confirm whether ink condition remains within the approved range.
Better process visibility also helps shift handovers. Incoming operators can review target values, recent corrections, alarms, and production notes before continuing the job.
Choosing the Right Viscosity Setpoint for Each Job
A stable setpoint is useful only when it is appropriate for the job. Operators should start with the ink supplier's recommended viscosity range.
That starting range should then be validated against the actual press, anilox specification, plate type, substrate, drying capacity, and required print appearance.
There is no universal viscosity value for all water based inks. A setting that works on coated paper may not perform correctly on uncoated corrugated liner.
Print coverage matters as well. Heavy solids, fine linework, small reverse text, barcodes, and process-color images can require different control priorities.
Operators should record the final approved viscosity, temperature, pH, press speed, anilox details, and substrate specification for repeat jobs.
These job records create a practical operating baseline. They reduce setup time when the same customer artwork, board grade, or color sequence returns.
Do not change the setpoint simply to hide another issue. For example, poor anilox cleaning or damaged plates cannot be reliably corrected through viscosity adjustments.
When the correct process conditions are documented, the viscosity controller becomes a repeatability tool rather than a substitute for disciplined press maintenance.
How to Use the System During Setup and Production
Before starting production, confirm that the ink tank is clean, the circulation path is open, and the controller has the correct job-specific target value.
Check the water or correction-fluid supply before the run begins. An empty container can create avoidable alarms and disrupt automatic control.
Allow ink to circulate long enough for the reading to stabilize. Freshly mixed ink may not represent final running conditions immediately after loading.
During color approval, compare the controller reading with the approved drawdown, visual sample, color measurement results, and customer quality requirements.
Once production begins, avoid making frequent manual additions without recording them. Untracked corrections can confuse the automatic control response and job history.
If the system makes repeated corrections, inspect the cause. Excessive evaporation, leaks, poor tank coverage, temperature change, or incorrect settings may be involved.
Monitor the printed result, not only the display value. A stable number is useful, but print quality remains the final measure of process performance.
At job completion, document any changes made during the run. This information helps improve future setup standards and supports consistent repeat production.
Common Problems and Practical Troubleshooting Steps
If viscosity readings fluctuate sharply, first check whether the sensor or cup is clean. Dried ink, foam, and contamination can affect measurement accuracy.
Air entering the circulation line may also cause unstable readings. Inspect pump connections, hose clamps, return lines, and tank levels for possible issues.
If the controller adds water too often, confirm whether the pressroom temperature or dryer airflow has changed since the original job setup.
High evaporation may require practical changes beyond controller settings, such as tank covers, adjusted airflow, shorter open exposure, or approved ink additives.
If print appears weak while viscosity remains on target, inspect anilox cell condition, plate contact, doctor blades, impression setting, and substrate absorbency.
If print appears dirty or flooded, verify that the selected viscosity target is correct for the artwork. Also check plate damage and excessive ink volume.
Foaming requires separate attention. Pump speed, return-line design, ink formulation, and defoamer compatibility can all affect foam formation in water based inks.
Operators should escalate persistent problems using recorded data. Viscosity trends, temperature history, correction volume, and print samples give technicians useful evidence.
Maintenance That Protects Measurement Accuracy
Viscosity control performance depends on regular maintenance. A well-designed system can still produce poor results if sensors, valves, and circulation lines are neglected.
Clean measuring components according to the supplier's instructions, especially after production stops, ink changes, or extended periods with low circulation activity.
Inspect dosing pumps and valves for blocked lines, leaking fittings, worn seals, and inconsistent delivery. Small dosing errors can affect long runs.
Verify calibration at scheduled intervals. A comparison against a trusted manual measurement method can help identify drift before quality problems develop.
Keep correction liquids clearly labeled and protected from contamination. Using the wrong additive can alter drying, color strength, pH balance, and ink stability.
Maintenance records should include cleaning dates, calibration checks, replacement parts, alarm causes, and any recurring issue linked to particular inks or jobs.
These records support preventive maintenance and provide useful information when discussing performance with ink suppliers, press manufacturers, or engineering service teams.
When a Viscosity Control System Delivers the Most Value
Water based ink viscosity control systems are particularly valuable for long production runs, high-speed flexographic presses, and work requiring close color consistency.
They are also useful where operators manage frequent job changes, multiple colors, variable substrates, or demanding customers with strict packaging quality standards.
Carton plants printing barcodes, retail graphics, food packaging, pharmaceutical packs, and brand-sensitive corrugated displays can benefit from reduced ink variation.
The business value usually appears through lower waste, shorter stabilization time, fewer manual corrections, more repeatable quality, and clearer process control.
However, system selection should consider cleaning requirements, sensor compatibility, integration with existing tanks, operator training, and access to maintenance support.
Buyers should ask suppliers how the system performs with their specific inks, typical press speeds, correction-fluid rules, and expected production environment.
Conclusion
Water based ink viscosity control systems stabilize print quality by keeping ink transfer more consistent as evaporation, temperature, speed, and production conditions change.
For operators, the practical benefit is straightforward: fewer unpredictable color shifts, faster troubleshooting, cleaner printing, and more confidence during demanding production runs.
The system works best when paired with correct job settings, reliable ink circulation, routine maintenance, documented standards, and regular inspection of printed output.
Used in this disciplined way, viscosity control becomes a valuable process tool for producing dependable flexographic and corrugated packaging print quality every day.
